Masthead Amplifier - UHF/VHF

https://www.digibean.au/web/image/product.template/295/image_1920?unique=5415677

Key Features

  • Supported frequency range: 174-694 MHz
  • Maximum Gain: 15dB
  • 4G/LTE Filtering
  • Weatherproof housing
  • F-Type Connectors

Description

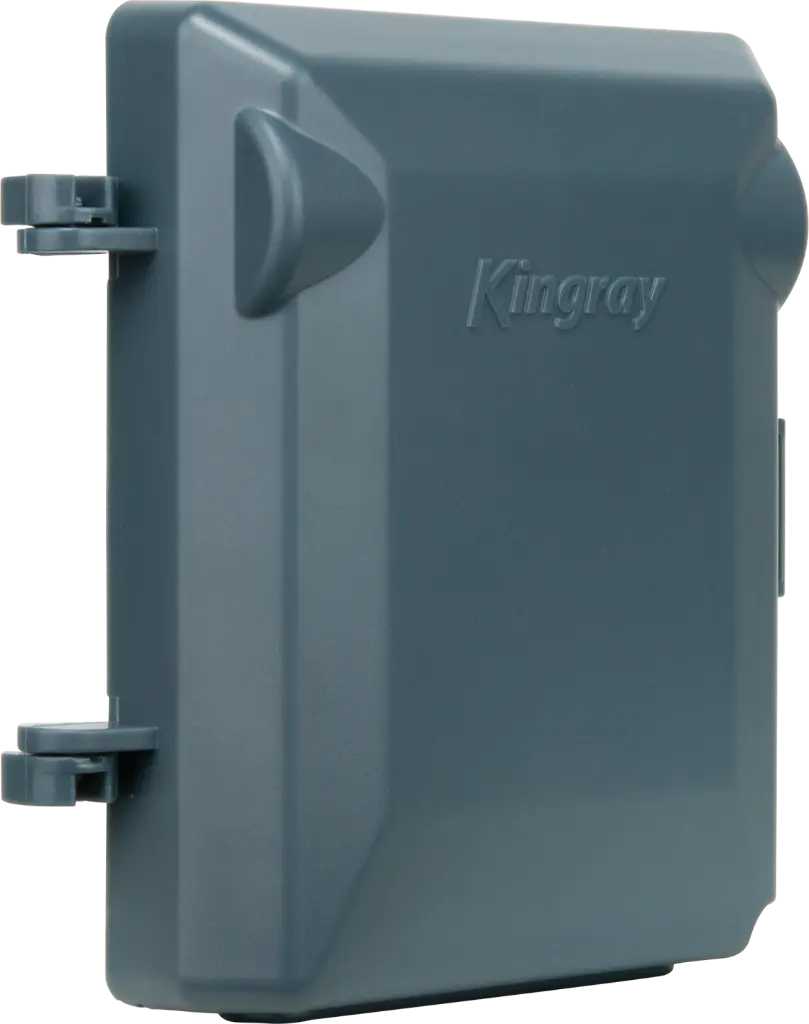

The Kingray MDA15W is a VHF/UHF TV masthead distribution amplifier which has a single combined input for VHF/UHF antennas to amplify the frequency range of 174-694 MHz and with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out. Whether the unit is used as a masthead or distribution amplifier, the low noise figure, capacity for multiple channels with low distortion and a high output has proven to be effective in all installations, especially digital problem areas.

The MDA15 range is based on a concept of convergent technology. The characteristics of the IC selected provides a very low noise figure and output figure that equals our DW32, 113dB @ -60 dB IMR, hence the name Masthead Distribution Amplifier (MDA).

The masthead is powered remotely via a Kingray PSK06 series power supply (sold separately).

$ 50.00 50.0 AUD $ 50.00

$ 50.00

Not Available For Sale

This combination does not exist.

Contact Us
